Selection guide

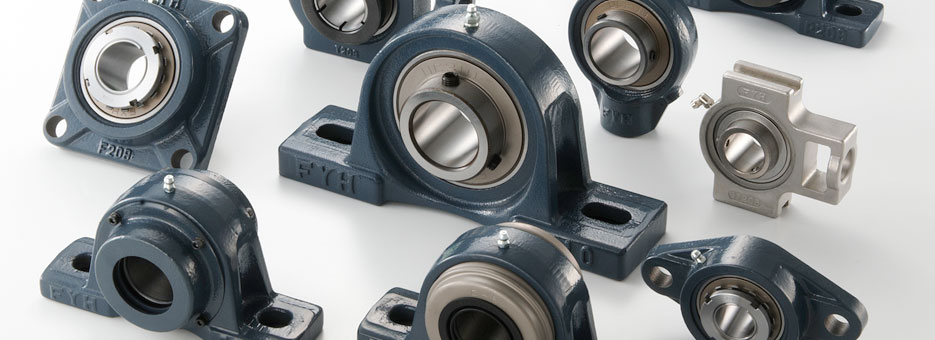

1. Please select the most suitable housing for your application.
- P
- Pillow Block
- PA
- Tapped-Base Pillow Block
- PH
- High-Base Pillow Block
- LP
- Light Pillow Block
- IP
- Thick Pillow Block
- PP
- Stamped Steel Pillow Block
- F
- 4-Bolt Flange
- FS
- Square Piloted 4-Bolt Flange
- FL
- 2-Bolt Flange
- LF
- Light 2-Bolt Flange
- PFL
- Stamped Steel 2-Bolt Flange
- FA
- Adjustable 2-Bolt Flange
- FB
- 3-Bolt Flange
- FC
- 4-Bolt Flange Cartridge
- T
- Take-Up
- C
- Cartridge
- H
- Hanger

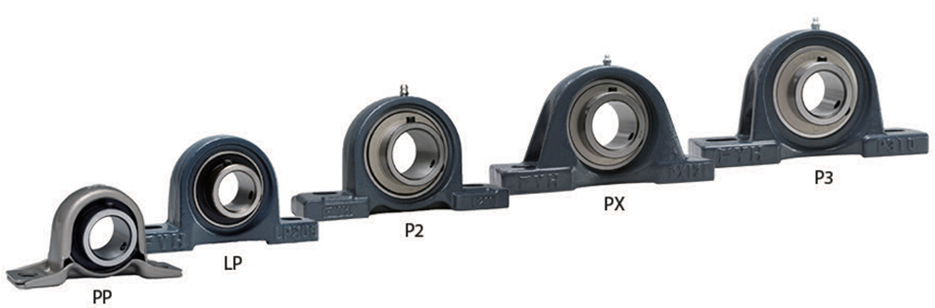

2. Please select the shaft diameter and load required for your application.
- SU
- Inner diameter 10 mm to 30 mm
- SA・SB
- Inner diameter 12 mm to 40 mm
- UC
- Inner diameter 12 mm to 140 mm
- NA
- Inner diameter 12 mm to 75 mm
- NC
- Inner diameter 20 mm to 60 mm
- UK
- Inner diameter 20 mm to 120 mm
- ZK
- Inner diameter 20 mm to 55 mm
- Light load
- Normal load
- Medium load
- Heavy load
3. Please select bearing specifications for your application.
| Heat Resistance | D2K2 -50°C ～ 120°C, D1K2 -40°C ～ 180°C, D9K2 -20°C ～ 230°C |
|---|---|

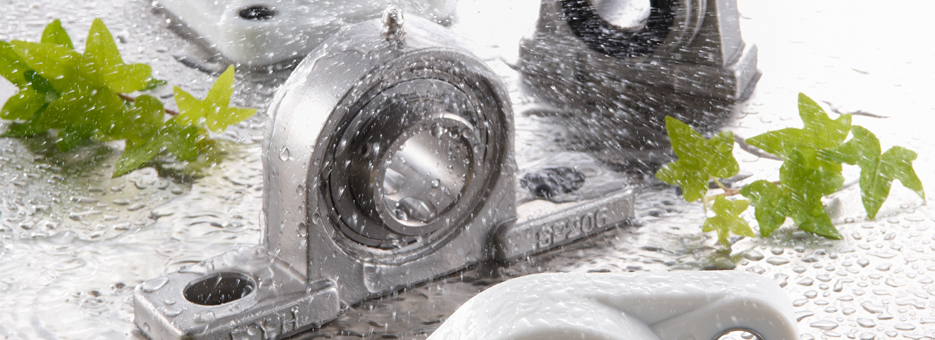

| Water Resistance | Stainless steel unit, thermoplastic unit |
| Air Handling | S3 For General Blower, S5 For High Speed Blower |
| Dust Resistance | L3 triple seal, with unit cover |
| Mud Resistance | Unit with cover |

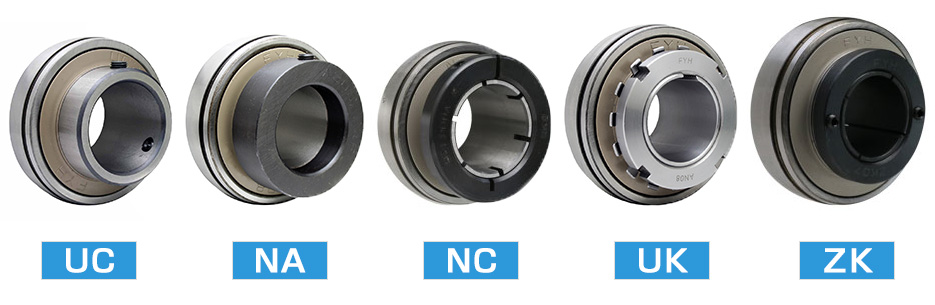

4. Please select the bearing fixing method.
- UC
- With set screw
- NA
- With eccentric locking collar
- NC
- With concentric locking collar
- UK
- With adapter
- ZK
- With Z lock sleeve
5. Selection result
